WMX100A/WMX100B Handheld Process Calibrator

Short Description:

Price：55USD~65USD

This handheld current and voltage calibrator has a variety of signal measurement and output functions, including voltage, frequency, current, loop current measurement and voltage, frequency, active current, passive current output, etc. Keys with distinct functions, single operation room, easy to use, high precision, long standby time and programmable automatic output function. It is widely used in the debugging of PLC and process instruments, electric valves, etc. in laboratories and industrial sites.

WXM100A has optional voltage measurement/output function

WXM100B has the function of selecting voltage and frequency measurement/output

Send email to us

Product Detail

Product Tags

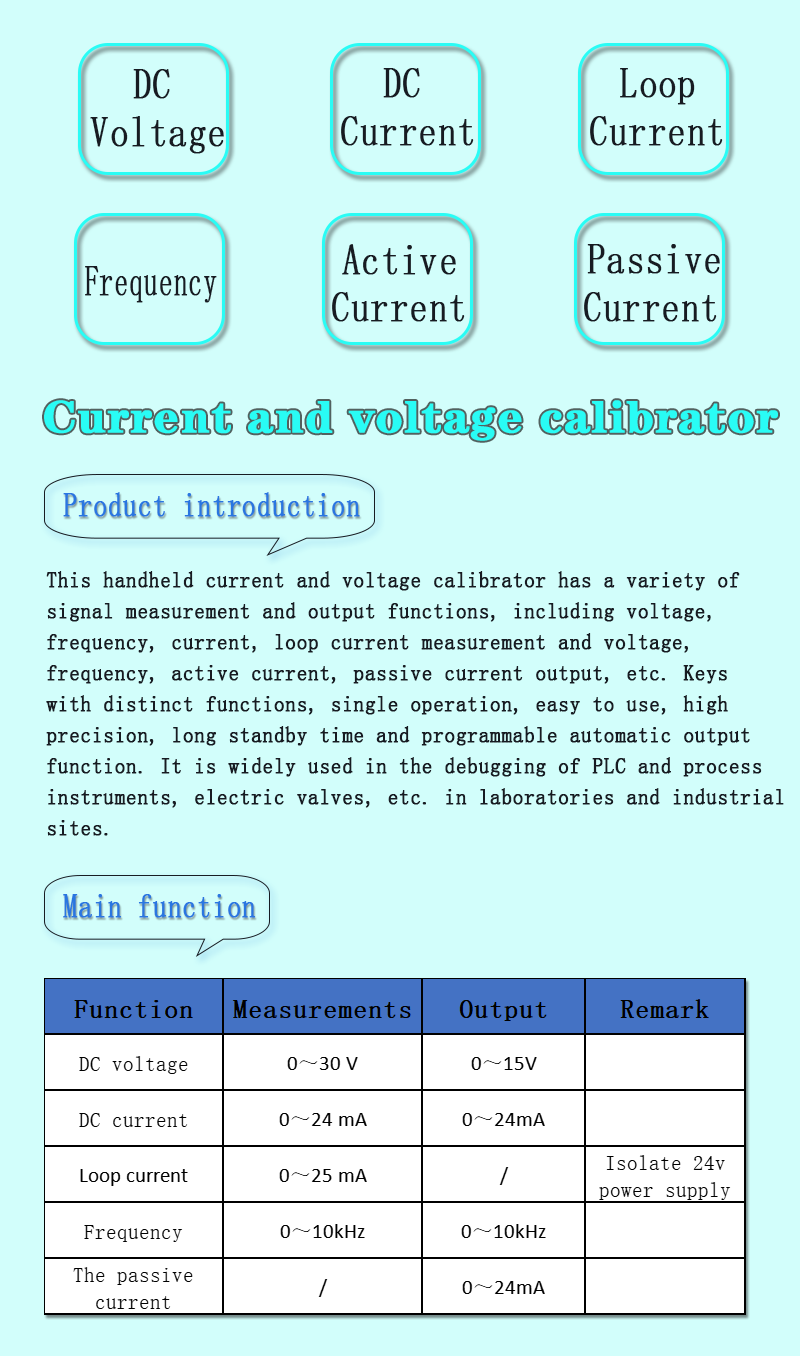

main function

Function	Measurement	Output	Remarks
DC voltage	0～30 V	0～15V
DC	0～24 mA	0～24mA
Loop loop current	0～25 mA	/	Isolated 24V power supply
frequency	0～10kHz	0～10kHz
passive current	/	0～24mA

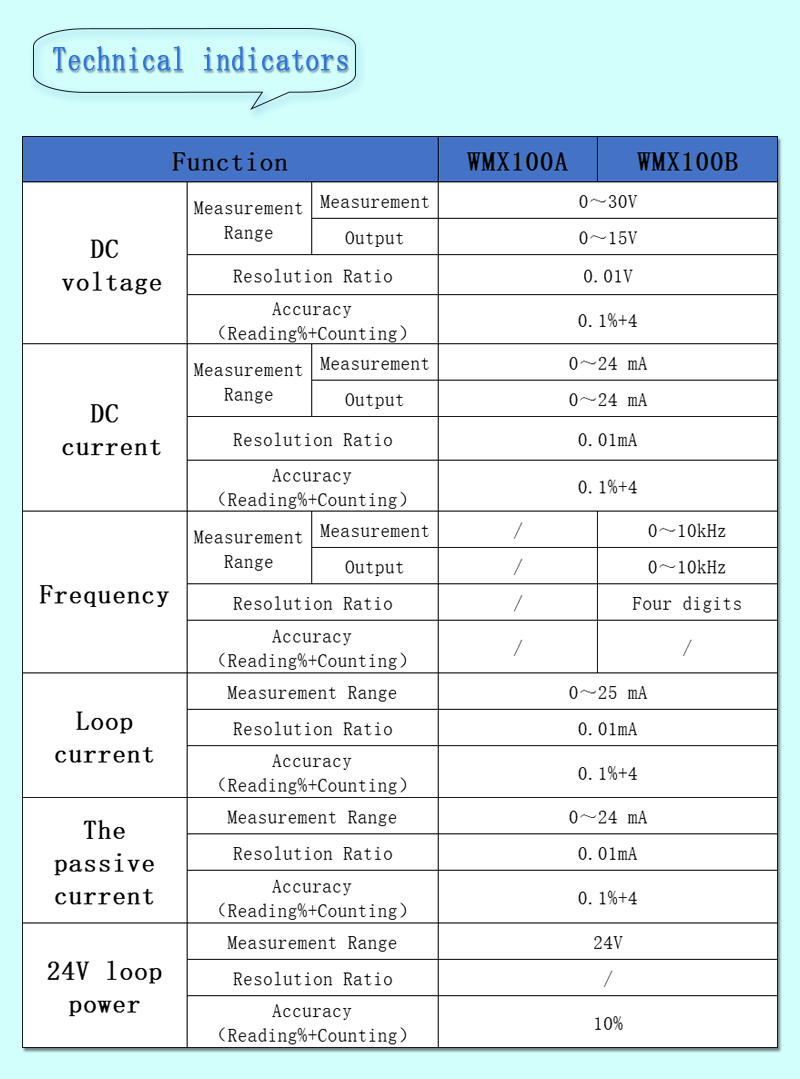

Technical indicators

Function	RANGE	Resolution	precision（% of reading + count）
DC voltage	Measurement 0～30V	0.01V	0.1%+4
DC voltage	output 0～15V	0.01V	0.1%+4
DC current	Measurement 0～24 mA	0.01mA	0.1%+4
DC current	output 0～24 mA	0.01mA	0.1%+4
frequency	Measurement 0～10kHz	4 significant digits
frequency	Output 0～10kHz	4 significant digits
24 V loop current	0～25 mA	0.01mA	0.1%+4
passive current	0～24 mA	0.01mA	0.1%+4
24V LOOP POWER	24V	/	10%
